Yamaha

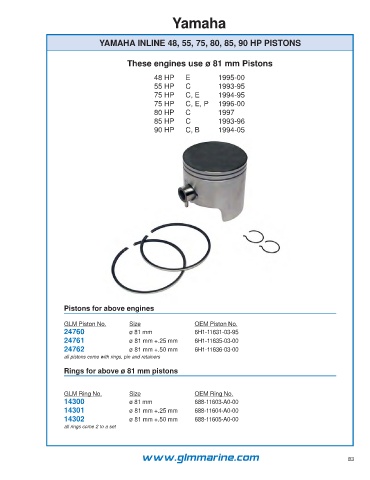

YAMAHA INLINE 48, 55, 75, 80, 85, 90 HP PISTONS
These engines use ø 81 mm Pistons
48 HP E 1995-00
55 HP C 1993-95
75 HP C, E 1994-95
75 HP C, E, P 1996-00
80 HP C 1997
85 HP C 1993-96
90 HP C, B 1994-05
Pistons for above engines
GLM Piston No. Size OEM Piston No.
24760 ø 81 mm 6H1-11631-03-95
24761 ø 81 mm +.25 mm 6H1-11635-03-00
24762 ø 81 mm +.50 mm 6H1-11636-03-00
all pistons come with rings, pin and retainers
Rings for above ø 81 mm pistons
GLM Ring No. Size OEM Ring No.
14300 ø 81 mm 688-11603-A0-00
14301 ø 81 mm +.25 mm 688-11604-A0-00
14302 ø 81 mm +.50 mm 688-11605-A0-00
all rings come 2 to a set
www.glmmarine.com 83
