Yamaha

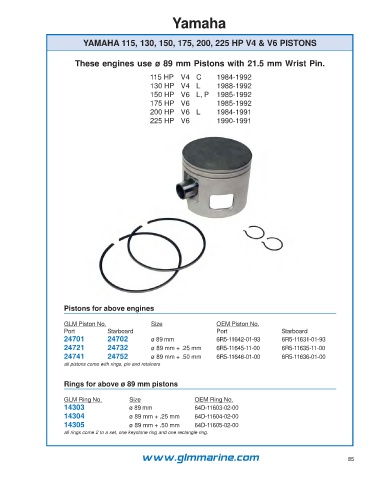

YAMAHA 115, 130, 150, 175, 200, 225 HP V4 & V6 PISTONS
These engines use ø 89 mm Pistons with 21.5 mm Wrist Pin.
115 HP V4 C 1984-1992
130 HP V4 L 1988-1992
150 HP V6 L, P 1985-1992
175 HP V6 1985-1992
200 HP V6 L 1984-1991
225 HP V6 1990-1991
Pistons for above engines
GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
24701 24702 ø 89 mm 6R5-11642-01-93 6R5-11631-01-93
24721 24732 ø 89 mm + .25 mm 6R5-11645-11-00 6R5-11635-11-00
24741 24752 ø 89 mm + .50 mm 6R5-11646-01-00 6R5-11636-01-00
all pistons come with rings, pin and retainers
Rings for above ø 89 mm pistons
GLM Ring No. Size OEM Ring No.
14303 ø 89 mm 64D-11603-02-00
14304 ø 89 mm + .25 mm 64D-11604-02-00
14305 ø 89 mm + .50 mm 64D-11605-02-00
all rings come 2 to a set, one keystone ring and one rectangle ring.
www.glmmarine.com 85
