Yamaha

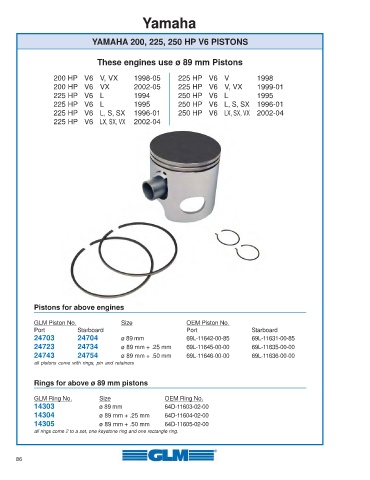

YAMAHA 200, 225, 250 HP V6 PISTONS
These engines use ø 89 mm Pistons
200 HP V6 V, VX 1998-05 225 HP V6 V 1998
200 HP V6 VX 2002-05 225 HP V6 V, VX 1999-01
225 HP V6 L 1994 250 HP V6 L 1995
225 HP V6 L 1995 250 HP V6 L, S, SX 1996-01
225 HP V6 L, S, SX 1996-01 250 HP V6 LX, SX, VX 2002-04
225 HP V6 LX, SX, VX 2002-04
Pistons for above engines
GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
24703 24704 ø 89 mm 69L-11642-00-85 69L-11631-00-85
24723 24734 ø 89 mm + .25 mm 69L-11645-00-00 69L-11635-00-00
24743 24754 ø 89 mm + .50 mm 69L-11646-00-00 69L-11636-00-00
all pistons come with rings, pin and retainers
Rings for above ø 89 mm pistons
GLM Ring No. Size OEM Ring No.
14303 ø 89 mm 64D-11603-02-00
14304 ø 89 mm + .25 mm 64D-11604-02-00
14305 ø 89 mm + .50 mm 64D-11605-02-00
all rings come 2 to a set, one keystone ring and one rectangle ring.
86
