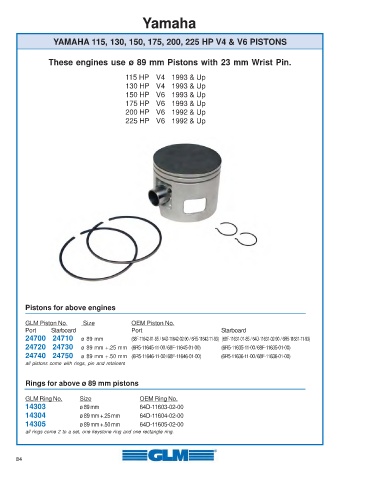

P. 84
Yamaha
YAMAHA 115, 130, 150, 175, 200, 225 HP V4 & V6 PISTONS
These engines use ø 89 mm Pistons with 23 mm Wrist Pin.
115 HP V4 1993 & Up
130 HP V4 1993 & Up
150 HP V6 1993 & Up
175 HP V6 1993 & Up
200 HP V6 1992 & Up
225 HP V6 1992 & Up
Pistons for above engines
GLM Piston No. Size OEM Piston No.
Port Starboard Port Starboard
24700 24710 ø 89 mm (68F-11642-01-85 / 64D-11642-02-90 / 6R5-11642-11-93) (68F-11631-01-85 / 64D-11631-02-90 / 6R5-11631-11-93)
24720 24730 ø 89 mm +.25 mm (6R5-11645-11-00 / 68F-11645-01-00) (6R5-11635-11-00 / 68F-11635-01-00)
24740 24750 ø 89 mm +.50 mm (6R5-11646-11-00 / 68F-11646-01-00) (6R5-11636-11-00 / 68F-11636-01-00)
all pistons come with rings, pin and retainers
Rings for above ø 89 mm pistons
GLM Ring No. Size OEM Ring No.
14303 ø 89 mm 64D-11603-02-00
14304 ø 89 mm +.25 mm 64D-11604-02-00
14305 ø 89 mm +.50 mm 64D-11605-02-00
all rings come 2 to a set, one keystone ring and one rectangle ring.
84
